Hydrogen Storage Trailer
A cost-effective solution for collecting and transporting hydrogen gas, giving you control, flexibility and efficient storage for many hydrogen applications.
24 kg hydrogen capacity
200 bar storage pressure
Owner driver with DG endorsement
Total trailer weight under 3,500 kg
Temperature and overpressure protection
Price: $79,995 NZD
1 All prices are subject to GST at the prevailing rate and do not include delivery, shipping, import/export taxes, or costs associated with site preparation and installation.
Overview
Collect, transport and deploy hydrogen with your own vehicle while reducing third-party delivery and storage costs.
As hydrogen technology and applications become more widespread, the running costs of hydrogen devices are heavily influenced by the final cost of the fuel.
Buying hydrogen can become significantly more expensive once transport and storage hire are added. The HST-24-200 lets you collect hydrogen and return it to your site without these additional per-kilogram costs, which can add up to 50%.
Use a typical ute and your own driver.2
This hydrogen trailer is made in Aotearoa New Zealand, bringing the benefits of local expertise and access to technology and service staff in the same time zone, language and industry environment.

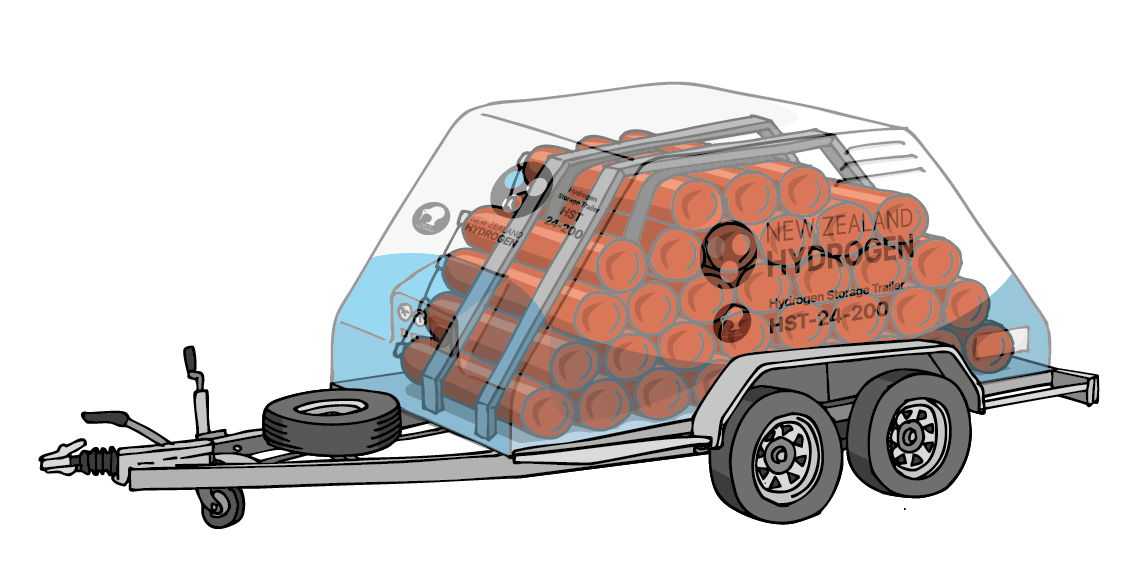

The HST-24-200 incorporates mechanical safety features including:
The product warranty covers:
Warranty remains subject to routine wear and tear and the customer’s use of the product.
New Zealand Hydrogen recommends annual service checks covering leakage and damage, the pressure gauge, cylinder fitting security, and weather and environmental protection.
2 The driver requires a valid Dangerous Goods endorsement on their driver’s licence.
What You Can Do With This Product
One full trailer of hydrogen can provide electrical power in a fuel cell power system or refuel FCEV vehicles.
| With 24 kg of hydrogen you can produce about 360 kWh of power from a hydrogen generator or fuel cell UPS system. |
| This is enough energy to power a typical home for about 15 days. |
| Fully charge a Tesla Model Y six times and travel for 2,760 km. |
| The trailer can be connected to the refuelling modules and the hydrogen boosted up to 700 bar for delivery to FCEV vehicles. |
| Fully refuel a Toyota Mirai FCEV four times and travel for 2,400 km. |
| Fully refuel a Toyota Hilux FCEV three times and travel for 1,800 km. |
Finance and Insurance
As an alternative to a one-off purchase as a CAPEX asset, the HST-24-200 can be paid for over time with bank finance and treated as an OPEX cost for your organisation.
The following examples show the total payments for the trailer, including GST.1
| Interest Rate | Monthly Payments | Total Interest | Total Repayment |
|---|---|---|---|
| 5 Year Term | |||
| 7.55% | $1,846 | $18,740 | $110,739 |
| 4 Year Term | |||
| 7.50% | $2,225 | $14,774 | $106,773 |
| 3 Year Term | |||
| 7.40% | $2,858 | $10,872 | $102,871 |
1 These figures are illustrative only and are based on lending quotes provided by Westpac. They were current when published and should be confirmed before any financial commitment.
The customer is responsible for arranging insurance for their hydrogen assets while they are stored or in active service.
Safety

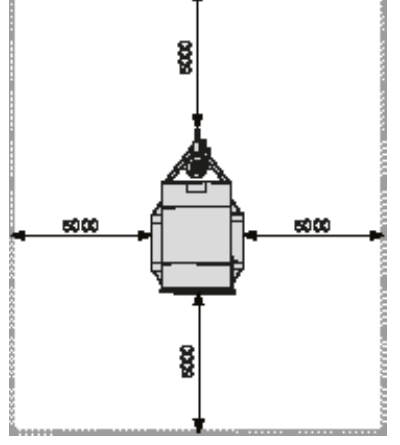

For a hydrogen storage trailer of this size and capacity, the safe working distance for protection against potential hazards is 5 metres.
When the trailer is installed on its own or with other equipment, a secure boundary such as a fence is required to prevent unauthorised access to the controls and fittings.

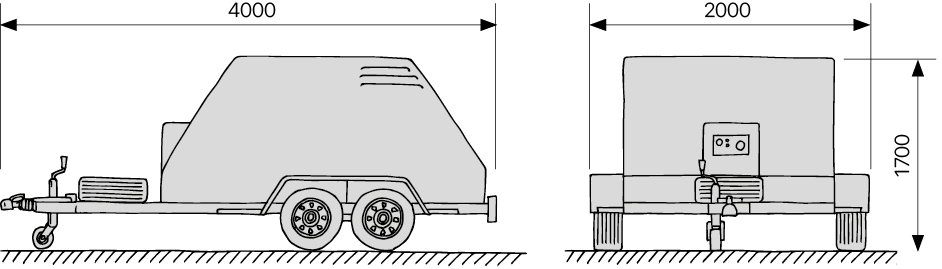

Dimensions
2 All dimensions were correct at the time of publication and are subject to change.
Specification
| Model number | HST-24-200 | ||
|---|---|---|---|
Hydrogen Storage | |||
| Hydrogen storage capacity | 24 kg | Hydrogen storage pressure | 200 bar |
| Pressure vessel type | Type 1 | Number of pressure vessels | 32 |
| Total water volume of vessels on the trailer | 1.6 m³ | ||
Refilling and Output | |||
| Hydrogen refill pressure (maximum) | 200 bar | Refill connection type | TBC |
| Output connection type | Type 20/21 | Built-in pressure gauge | Dial |
Environmental and Hardware | |||
| Ambient operating temperature range | 5-45°C (41-113°F) | Ambient operating humidity range | Up to 90%, non-condensing |
| IP rating | IP66 | Total trailer weight, fully loaded with hydrogen | 3,350 kg |
| Towing ball cup diameter | 50 mm | Trailer dimensions | 4,000 mm long x 2,000 mm wide x 1,700 mm high |
| Spare wheel | 1 | New trailer WOF certification | 3 years |
| Country of manufacture | Aotearoa New Zealand | Driver certification required | Dangerous Goods endorsement |
Related Products
Product Enquiry
Tell us where the hydrogen needs to go, how it will be used and what equipment it will connect to. We can help confirm the appropriate storage and delivery configuration.
